A2 type cable glads are as per BS 6121 Part 1:1989 and suitable for unarmoured, plastic or rubber sheathed cables. These glands provide outer seal joint and are suitable for indoor as well as outdoor applications.

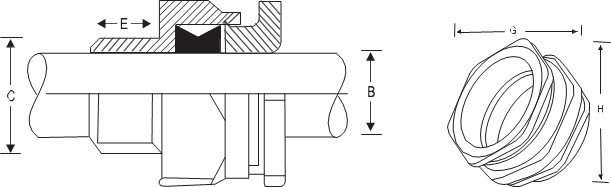

| GLAND SIZE | ENTRY THREAD | ||||
|---|---|---|---|---|---|
| DIA. C | LENGTH MINIMUM E | DIA MAX. B | ACROSS FLAT | ACROSS CORNER | |
| 16L | 16 | 12 | 3.50-9.00 | 21.00 | 24.00 |
| 20S | 20 | 12 | 8.00-11.70 | 22.00 | 25.00 |
| 20L | 20 | 12 | 11.00-14.00 | 24.00 | 26.60 |
| 25S | 25 | 15 | 12.00-17.00 | 27.00 | 30.50 |
| 25L | 25 | 15 | 13.00-20.70 | 30.00 | 33.30 |
| 32S | 32 | 15 | 16.50-23.00 | 37.00 | 41.00 |
| 32L | 32 | 15 | 19.00-26.30 | 41.00 | 45.50 |
| 40S | 40 | 20 | 23.00-29.00 | 45.00 | 50.00 |
| 40L | 40 | 20 | 25.00-33.00 | 46.00 | 51.00 |
| 50S | 50 | 20 | 31.50-38.20 | 58.00 | 64.00 |
| 50L | 50 | 20 | 36.50-44.00 | 62.00 | 69.00 |
| 63S | 63 | 20 | 42.50-50.00 | 69.00 | 76.00 |
| 63L | 63 | 20 | 48.00-56.00 | 73.00 | 81.00 |
| 75S | 75 | 20 | 54.50-62.00 | 82.00 | 91.00 |
| 75L | 75 | 20 | 60.50-68.00 | 88.00 | 97.00 |
| 90L | 90 | 20 | 66.00-77.00 | 103.00 | 114.00 |
