Single compression Brass Cable Glands are suitable for armoured/unarmoured cabels. These are manufactured out of brass casting and are machined accurately to the required sizes. These glands are nickle plated to avoid corrosion while storage and use.

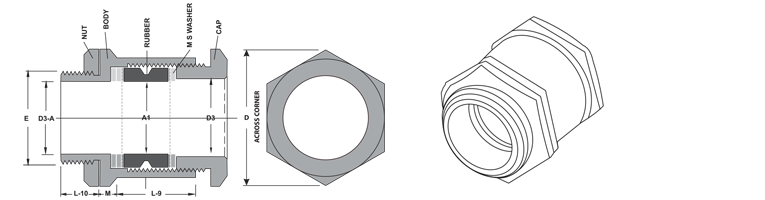

Each gland comprises of Brass Body with nipple thread as per I.S. 12943:1990 Compression nut, Check nut, Rubber Ring and three metal washers. The detail parts are shown in the functional drawing.
These glands are weather proof and ater right and have provision for earthing the armoured cables. These glands are available in various different sizes and are suitable for all cabels upto 1000 sq.mm. and control cables upto 61 cores. The entry thread on gland body is normally threaded according to IS 1653 (Steel conduits for electric wiring). However if any special kind of thread required, the same can be supplied. The glands can be supplied with special plating such as cadmium, tin or passivated.
| GLANDS REF. | NIP.OD | CAP.BORING | NIP.ID | A.CROSS | BODY HEIGHT | NIP.HEIGHT | B.NUT | RUB.ID | CABLE DIAMETER (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| E | D-3 | D-3 A | D | L-9 | L-10 | M | A-1 | ABOVE | UPTO | |
| BC-3/8” | 1/2” | 14.00 | 12.00 | 20.00 | 10.50 | 6.00 | 2.00 | 8.00 | 9.00 | 13.50 |
| BC-1/2"L | 5/8" | 15.00 | 13.00 | 23.00 | 12.50 | 6.50 | 2.00 | 12.00 | 10 | 14.5 |
| BC-1/2"H | 5/8" | 15.00 | 13.00 | 23.50 | 14.00 | 7.50 | 3.00 | 12.00 | 10 | 14.5 |
| BC-5/8" | 3/4" | 15.00 | 15.00 | 23.00 | 14.00 | 7.00 | 2.00 | 12.00 | 10 | 14.5 |
| BC-5/8" | 3/4" | 15.00 | 15.00 | 23.50 | 15.00 | 8.00 | 3.00 | 12.00 | 10 | 14.5 |
| BC-3/4"L | 3/4" | 17.50 | 15.00 | 26.00 | 15.50 | 8.00 | 2.50 | 14.00 | 14 | 17 |
| BC-3/4"H | 3/4" | 17.50 | 15.00 | 27.50 | 16.50 | 9.00 | 3.00 | 14.00 | 14 | 17 |
| BC-7/8"L | 3/4" | 20.00 | 15.00 | 29.00 | 16.00 | 8.00 | 2.50 | 16.00 | 17 | 19.5 |
| BC-7/8"H | 3/4" | 20.00 | 15.00 | 29.50 | 17.00 | 9.00 | 3.00 | 16.00 | 17 | 19.5 |
| BC-1"L | 1" | 23.50 | 21.50 | 32.50 | 19.50 | 8.00 | 3.00 | 20.00 | 19.5 | 23 |
| BC-1"H | 1" | 23.50 | 21.00 | 34.50 | 19.00 | 10.00 | 3.50 | 20.00 | 19.5 | 23 |
| BC-1"S | 3/4" | 23.50 | 15.00 | 32.50 | 17.50 | 8.00 | 3.00 | 18.00 | 19.5 | 23 |
| BC-1-1/8" | 1-1/8" | 28.00 | 25.00 | 39.00 | 21.00 | 10.50 | 4.00 | 25.00 | 23 | 27 |
| BC-1-1/4" | 1-1/4" | 31.50 | 27.00 | 42.50 | 21.00 | 10.50 | 4.00 | 27.00 | 27 | 30 |
| BC-1-3/8" | 1-3/8" | 35.50 | 31.00 | 47.50 | 22.00 | 10.50 | 4.50 | 31.00 | 30 | 34 |
| BC-1-1/2" | 1-1/2" | 39.00 | 34.00 | 52.00 | 22.00 | 10.50 | 4.50 | 33.00 | 34 | 38 |
| BC-1-3/4" | 1-3/4" | 45.00 | 40.00 | 59.00 | 23.00 | 11.50 | 4.50 | 39.00 | 38 | 44 |
| BC-2" | 2" | 51.50 | 45.00 | 68.00 | 23.00 | 11.50 | 4.50 | 44.00 | 44 | 50 |
| BC-2-1/4" | 2-1/4" | 58.00 | 52.00 | 75.00 | 23.50 | 11.50 | 5.00 | 52.00 | 50 | 56.5 |
| BC-2-1/2" | 2-1/2" | 62.50 | 58.00 | 80.00 | 25.00 | 13.00 | 5.50 | 58.00 | 56.5 | 61 |
| BC-2-3/4" | 2-3/4" | 70.00 | 65.50 | 90.00 | 28.00 | 13.50 | 5.50 | 65.00 | 61 | 68 |
| BC-3" | 3" | 76.00 | 69.50 | 100.00 | 28.00 | 13.50 | 5.50 | 70.00 | 68 | 74 |
| BC-3-1/4" | 3-1/4" | 82.00 | 75.00 | 115.00 | 29.00 | 15.00 | 5.50 | 75.00 | 74 | 80 |
| BC-3-1/2" | 3-1/2" | 88.00 | 82.00 | 117.00 | 29.00 | 15.00 | 6.00 | 80.00 | 80 | 86 |
| BC-4" | 4" | 100.00 | 92.50 | 127.00 | 36.00 | 20.00 | 6.00 | 86.00 | 86 | 98 |
| BC-4-1/2" | 4-1/2" | 108.00 | 102.00 | 145.00 | 38.00 | 23.00 | 7.00 | 90.00 | 98 | 105 |
