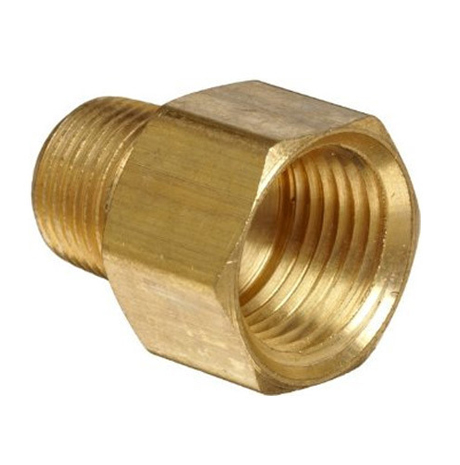

Adaptors are used along with Glands for Extended or reduced entry holes in a apparatus. These are mainly manufactured out of brass but can be supplied in SS-304/316 and Aluminium also.
Brass Adaptors are nickel plated to avoid corrosion whilst storage and use. These are supplied with "O" Rings for IP Protection. These Adaptors are Certified by Central Institute of Mining and Fuel Research, Dhanbad for use in Weather proof as well as Flame proof conditions.
Adaptors are available with Different thread combination such as ET to ET, ET to MM, ET to NPT, MM to ET, MM to MM, MM to NPT, NPT to ET, NPT to MM and NPT toNPT.
Suffix - BAD = for Brass Adaptors, SAD = for SS Adaptors and ALAD = for Aluminium Adaptors
| SIZE(MXF) | M | F | L1 | T | L | E | E1 |
|---|---|---|---|---|---|---|---|
| BAD 5/8" ET X 3/4" ET | 5/8"ET | 3/4"ET | 12 | 3 | 12 | 22 | 25.5 |
| BAD 5/8" ET X 1" ET | 5/8"ET | 1"ET | 12 | 3 | 12 | 28 | 32.5 |
| BAD 5/8" ET X 1-1/4" ET | 5/8"ET | 1-1/4"ET | 12 | 4 | 12 | 35 | 40.5 |
| BAD 3/4" ET X 1" ET | 3/4"ET | 1"ET | 12 | 3 | 12 | 28 | 32.5 |
| BAD 3/4" ET X 1-1/4" ET | 3/4"ET | 1-1/4"ET | 12 | 4 | 12 | 35 | 40.5 |
| BAD 3/4" ET X 1-1/2" ET | 3/4"ET | 1-1/2"ET | 12 | 4 | 12 | 42 | 48 |
| BAD 1" ET X 1-1/2"ET | 1"ET | 1-1/2"ET | 12 | 4 | 12 | 42 | 48 |
| BAD 1" ET X 1-1/4" ET | 1"ET | 1-1/4"ET | 12 | 4 | 12 | 35 | 40.5 |
| BAD 1" ET X 2" ET | 1"ET | 2"ET | 12 | 4 | 15 | 55 | 64 |
| BAD 1-1/4" ET X 1-1/2" ET | 1-1/4"ET | 1-1/2"ET | 12 | 4 | 12 | 42 | 48 |
| BAD 1-1/4" ET X 2" ET | 1-1/4"ET | 2"ET | 12 | 4 | 15 | 55 | 64 |
| BAD 1-1/4" ET X 2-1/2" ET | 1-1/4"ET | 2-1/2"ET | 12 | 5 | 15 | 68 | 79 |
| BAD 1-1/2" ET X 2"ET | 1-1/2"ET | 2"ET | 12 | 4 | 15 | 55 | 64 |
| BAD 1-1/2" ET X 2-1/2" ET | 1-1/2"ET | 2-1/2"ET | 12 | 5 | 15 | 68 | 79 |
| BAD 1-1/2" ET X 3" ET | 1-1/2"ET | 3"ET | 12 | 5 | 15 | 81 | 94 |
| BAD 2" ET X 2-1/2" ET | 2"ET | 2-1/2"ET | 15 | 5 | 15 | 68 | 79 |
| BAD 2" ET X 3" ET | 2"ET | 3"ET | 15 | 5 | 15 | 81 | 94 |
| BAD 2" ET X 3-1/2"ET | 2"ET | 3-1/2"ET | 15 | 6 | 15 | 95 | 110 |
| BAD 2-1/2" ET X 3" ET | 2-1/2"ET | 3"ET | 15 | 5 | 15 | 81 | 94 |
| BAD 2-1/2" ET X 3-1/2" ET | 2-1/2"ET | 3-1/2"ET | 15 | 6 | 15 | 95 | 110 |
| BAD 3" ET X 3-1/2" ET | 3"ET | 3-1/2"ET | 15 | 6 | 15 | 95 | 110 |
| BAD 5/8" ET X M20 | 5/8"ET | M20 | 12 | 3 | 12 | 23.5 | 27.5 |
