Single Compression Through Glands are specially designed for unarmored/Fexible cables as per BS 6121 Part 1:2005. These Glands are minly manufactured out of brass but can be supplied in SS-304/316 and Aluminium also. These Glands have one Rubber sal to ensure proper grip on Cable Outer Sheath. Brass Glads are nickle plated to avoide corrosion whilist storage and use. SS and Aluminium Glads are treated with ultrasonic bath.
These Glands are suitable for use under most climatic conditions and are certified by Central Institute of Mining and Fuel Research, Danbad for use in weather proof conditions. These Glands are rated with IP protection upto IP-658 Levels.
These glads are available in different sizes, suitable for all type of unarmored/flexible cabels upto 1000 sq.mm
Suffix-BCT = for Brass Glads, SCT = for SS Glands and ALCT = for Alumiium Glads
Threads can be ET/mm/NPT as per requirement.
Note : (1) Material : Brass as per IS-12943:1990 OR Aluminium HE-30 Grade OR SS-301/316. (2) Gland Entry Thread : BSC & MM as specifiedd (BSP or NPT also in Special case) (3) Nickle plated with plating thickness min 10 microns as per IS 12943:1990 (only in case of Brass) (4) IP protection IP-65

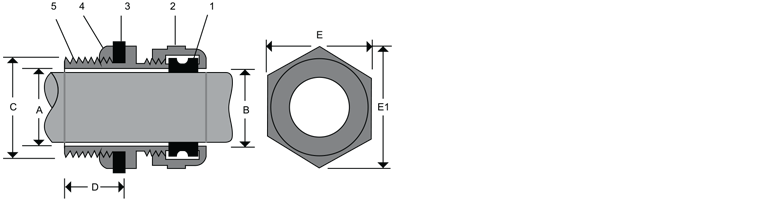

| CAT NO. | B | A |
A/F E |
A/C E1 |
NIPPLE THREAD C | D | ABOVE | UPTO |
|---|---|---|---|---|---|---|---|---|
| BCT-001SS | 11 | 14 | 22 | 25 | 3/4" | 12 | 5 | 10 |
| BCT-001S | 14 | 14 | 22 | 25 | 3/4" | 12 | 10 | 13.5 |
| BCT-001 | 15 | 15 | 24 | 27.5 | 3/4" | 12 | 11 | 14.5 |
| BCT-01L | 20 | 19 | 28 | 31 | 1" | 15 | 14 | 18 |
| BCT-02 | 20.5 | 20.5 | 30 | 35 | 1" | 15 | 18 | 20 |
| BCT-03SP | 23 | 23 | 32 | 36.5 | 28mm | 15 | 20 | 23 |
| BCT-04L | 28 | 27 | 37 | 43 | 1-1/4" | 15 | 23 | 26 |
| BCT-05L | 31 | 31 | 41 | 47 | 1-1/2" | 20 | 26 | 30 |
| BCT-06SP | 35 | 34 | 47 | 54 | 40mm | 20 | 30 | 33 |
| BCT-07SP | 39 | 37 | 52 | 59 | 42mm | 20 | 33 | 36 |
| BCT-08 | 43 | 43 | 55 | 63 | 2" | 20 | 36 | 41 |
| BCT-09 | 47 | 45 | 57 | 66 | 2" | 20 | 41 | 44 |
| BCT-010L | 54 | 54 | 67 | 77 | 2-1/2" | 20 | 44 | 52 |
| BCT-011S | 56 | 56 | 70 | 81 | 2-1/2" | 20 | 52 | 55 |
| BCT-011L | 61 | 60 | 80 | 92 | 70mm | 20 | 55 | 60 |
| BCT-012 | 68 | 67 | 84 | 97 | 3" | 20 | 60 | 66 |
| BCT-013SL | 73 | 72 | 90 | 103 | 3-1/4" | 20 | 66 | 72 |
| BCT-013 | 79 | 78 | 99 | 113 | 3-1/2" | 20 | 72 | 78 |
| BCT-014 | 85 | 84 | 105 | 118 | 3-3/4" | 20 | 78 | 83 |
| BCT-015 | 95 | 94 | 113 | 128 | 4" | 20 | 83 | 93 |
| BCT-016 | 106 | 105 | 125 | 140 | 4-1/2" | 20 | 93 | 104 |
