Double Compression Glads are manufactured out of brass rods/casting and are machined accurately to the required sizes. These are nickel to avoid corrosion whilst storage and use. These glands have two moisture proof seals and may be used under most climatic conditions. These are weather proof and when protected by a PVC shround, these can be used under most corrosive conditions. The armour cone and ring gives excellent mechanical and electrical connections.
These Glandss are certified by Central Institute of Mining and Fuel Research, Danbad for use in Weather proof conditions. These Glands are rated with IP protection upto IP-65 Levels. These glands are as per BS 6121:Part 1:2005 and have parts:Brass body, Armour clamp and Ring, Gland Barrel sealing nut, two seals, check nut, check nut and flat wasther between the gland barrel and check nut is provided to prevent the drag on outder seal.
These glands are available in various different sizes and suitable for all cables up to 1000 sq. mm and control cables up to 61 cores. Threads can be ET/mm/NPT as per requirement. However if any special kind of gland or thread is required, the same ca be supplied on request.
The gland can also be supplied with any other special plating such as cadmium, tin or pasivated. Also the glands can be supplied made out of aluminium, mild steel or stainless steel.
Characteristics : (1) Clamping cone will be provided with knurling for firm gripping of the armour. (2) Earthing tag will be provided if required at extra cost. (3) PVC protective shround can be supplied at extra cost. (4) Washer between seals are supplied for uniform radial gripping of PCP seals.

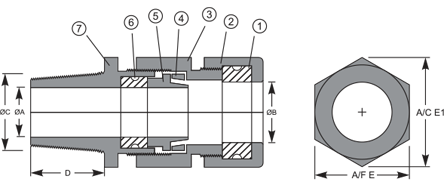

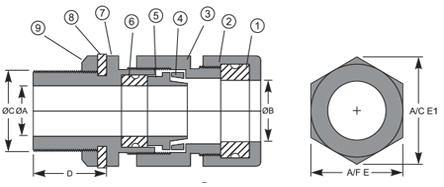

Installation Instruction : Remove te outer sheath to the desired length depending of the length of the leads required, and splay out the armour wire one by one and then cut the same according to the sharp edges of the armour wire and fit the gland as per assembly shown sectionally.
Parts : (1) Outer Seal (2) Sealing Nut (3) Gland Body (4) Clamping Ring (5) Armour Clamp (6) Inner Seal (7) Gland Nipple (8) Flat Washer (9) Check Nut
| CAT NO. | B | A |
A/F E |
A/C E1 |
NIPPLE THREAD C | D | ACCEPTABLE CABLE OD (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| ET | MM | NPT | ABOVE | UPTO | ||||||
| BPW-3/8' | 13 | 11 | 21 | 24 | 5/8" | M16 | 1/2" NPT | 12 | 8 | 12 |
| BPW-1/2' | 15 | 11 | 21 | 24 | 5/8" | M16 | 1/2" NPT | 12 | 8 | 13 |
| BPW-01S | 14 | 13 | 21 | 24 | 3/4" | M20 | 1/2" NPT | 12 | 8 | 13 |
| BPW-5/8" | 17 | 14 | 23 | 26 | 3/4" | M20 | 1/2" NPT | 15 | 11 | 15 |
| BPW-001 | 17 | 14 | 24 | 27.5 | 3/4" | M20 | 1/2" NPT | 15 | 12.5 | 16.5 |
| BPW-001S | 17.5 | 15 | 25 | 29 | 3/4" | M20 | 1/2" NPT | 15 | 12.5 | 16.5 |
| BPW-01 | 20 | 14 | 27 | 31 | 3/4" | M20 | 1/2" NPT | 15 | 15 | 18 |
| BPW-01L | 20 | 15 | 27 | 31 | 1" | M25 | 3/4" NPT | 15 | 15 | 18 |
| BPW-02 | 20.5 | 18 | 30.5 | 35.5 | 1" | M25 | 3/4" NPT | 15 | 18 | 20 |
| BPW-02S | 20.5 | 14 | 30.5 | 35.5 | 3/4" | M20 | 1/2" NPT | 15 | 18 | 20 |
| BPW-03 | 23 | 18 | 30.5 | 35.5 | 1" | M25 | 3/4" NPT | 15 | 20 | 23 |
| BPW-1" | 23 | 20 | 30.5 | 35.5 | 1" | M25 | 3/4" NPT | 15 | 20 | 23 |
| BPW-04 | 28 | 20 | 37 | 43 | 1" | M25 | 3/4" NPT | 15 | 23 | 26 |
| BPW-04L | 28 | 24 | 37 | 43 | 1-1/4" | M32 | 1" NPT | 15 | 23 | 26 |
| BPW-05 | 31 | 25 | 41 | 47 | 1-1/4" | M32 | 1" NPT | 15 | 26 | 30 |
| BPW-05L | 31 | 26 | 41 | 47 | 1-1/2" | M40 | 1-1/4" NPT | 15 | 26 | 30 |
| BPW-06 | 34 | 31 | 47 | 54.5 | 1-1/2" | M40 | 1-1/4" NPT | 15 | 30 | 33 |
| BPW-06S | 34 | 24 | 47 | 54.5 | 1-1/4" | M32 | 1" NPT | 15 | 30 | 33 |
| BPW-07 | 39 | 33 | 51 | 59 | 1-1/2" | M40 | 1-1/4" NPT | 15 | 33 | 37 |
| BPW-08 | 43 | 38 | 54 | 62 | 2" | M50 | 1-1/2" NPT | 15 | 37 | 41 |
| BPW-09 | 47 | 40 | 56 | 65 | 2" | M50 | 1-1/2" NPT | 15 | 41 | 46 |
| BPW-010 | 53 | 44 | 66 | 76.5 | 2" | M50 | 1-1/2" NPT | 20 | 46 | 52 |
| BPW-010L | 53 | 50 | 66 | 76.5 | 2-1/2" | M63 | 2" NPT | 20 | 46 | 52 |
| BPW-011 | 61 | 56 | 80 | 92 | 2-1/2" | M63 | 2" NPT | 20 | 52 | 60 |
| BPW-012 | 68 | 64 | 84 | 97 | 3" | M75 | 2-1/2" NPT | 20 | 60 | 66 |
| BPW-013S | 73 | 67 | 90 | 104 | 3" | M75 | 2-1/2" NPT | 20 | 66 | 72 |
| BPW-013 | 79 | 75 | 98 | 113 | 3-1/4" | M82 | 3" NPT | 20 | 72 | 78 |
| BPW-014 | 85 | 78 | 103 | 119 | 3-1/2" | M90 | 3" NPT | 20 | 78 | 83 |
| BPW-015 | 98 | 91 | 112 | 129 | 4" | M100 | 3-1/2" NPT | 24 | 83 | 93 |
| BPW-016 | 106 | 104 | 125 | 144 | 4-1/2" | M115 | 4" NPT | 25 | 93 | 104 |
