Brass PG Type Cable Glands are suitable for unarmoured, plastic or rubber sheathed cabels. These glands are made from Brass with Nickel Plated.
These Glands provide IP Protection upto IP-68 levels. Polyamide Claws with EPDM Rubber can hold cable firmly and have a wider cable Range. Resistant to salt water, Weak acid, Alcohol, Oil, Grease and Common Solvency.

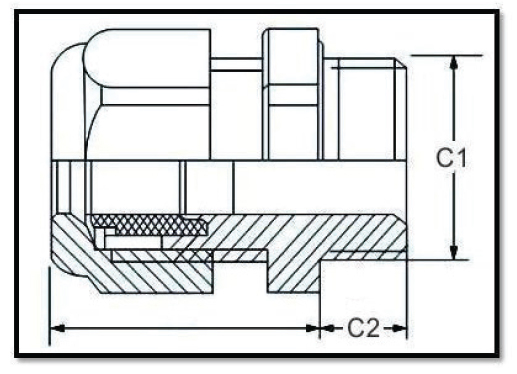

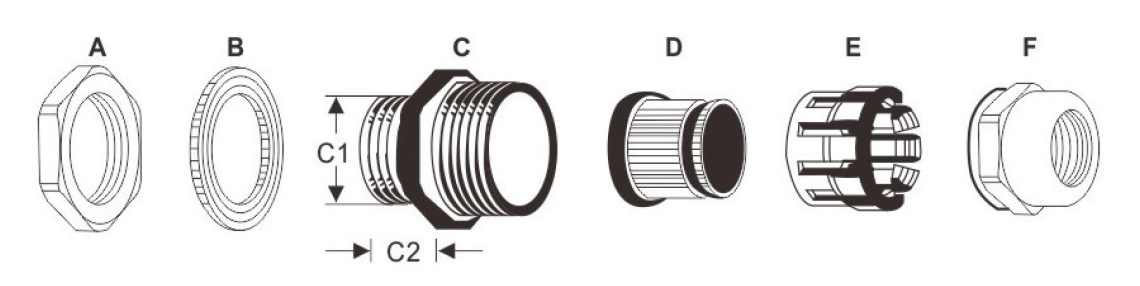

| Gland Size | Cable OD Range | Thread OD C1 | Thread Length C2 | Hex Dimension | |
|---|---|---|---|---|---|
| Short | Long | ||||
| BBPG-7 | 3-6.5 | 1.5 | 6 | 10 | 14 |
| BPG-7 S | 2-5 | 12.5 | 6 | 10 | 14 |
| BPG-9 | 4-8 | 15.2 | 7 | 10 | 17 |
| BPG-9 S | 2-6 | 15.2 | 7 | 10 | 17 |
| BPG-11 | 5-10 | 18.6 | 7 | 10 | 20 |
| BPG-11 S | 3-7 | 18.6 | 7 | 10 | 20 |
| BPG-13.5 | 6-12 | 20.4 | 7.5 | 10 | 22 |
| BPG-13.5 S | 5-9 | 20.4 | 7.5 | 10 | 22 |
| BPG-16 | 10-14 | 22.5 | 7.5 | 10 | 24 |
| BPG-16 S | 7-12 | 22.5 | 7.5 | 10 | 24 |
| BPG-19 | 11-15 | 24 | 8 | 12 | 26 |
| BPG-19 S | 10-13 | 24 | 8 | 12 | 26 |
| BPG-21 | 13-18 | 28.3 | 8 | 12 | 30 |
| BPG-21 S | 9-16 | 28.3 | 8 | 12 | 30 |
| BPG-25 | 16-20 | 30 | 9 | 12 | 33 |
| BPG-25 S | 13-18 | 30 | 9 | 12 | 33 |
| BPG-29 | 18-25 | 37 | 9 | 12 | 40 |
| BPG-29 S | 13-20 | 37 | 9 | 12 | 40 |
| BPG-36 | 22-32 | 47 | 9 | 15 | 50 |
| BPG-36 S | 20-26 | 47 | 9 | 15 | 50 |
| BPG-42 | 32-38 | 54 | 10 | 15 | 57 |
| BPG-42 S | 25-31 | 54 | 10 | 15 | 57 |
| BPG-48 | 37-44 | 59.3 | 11 | 15 | 64 |
| BPG-48 S | 29-35 | 59.3 | 11 | 15 | 64 |
| BPG-63 | 42-52 | 72 | 15 | 20 | 80 |
| BPG-63 S | 32-40 | 72 | 15 | 20 | 80 |
| Gland Size | Cable OD Range | Thread OD C1 | Thread Length C2 | Hex Dimension | |
|---|---|---|---|---|---|
| Short | Long | ||||
| BPGM-12x1.5 | 3-6.5 | M-12 | 6 | 10 | 14 |
| BPGM-16x1.5 | 4-8 | M-16 | 7 | 10 | 17 |
| BPGM-18x1.5 | 5-10 | M-18 | 7 | 10 | 20 |
| BPGM-20x1.5 | 6-12 | M-20 | 7.5 | 10 | 22 |
| BPGM-22x1.5 | 10-14 | M-22 | 7.5 | 10 | 24 |
| BPGM-24x1.5 | 11-15 | M-24 | 8 | 12 | 26 |
| BPGM-25x1.5 | 12-16 | M-25 | 8 | 12 | 27 |
| BPGM-25x1.5 | 13-18 | M-25 | 8 | 12 | 30 |
| BPGM-27x1.5(2) | 13-18 | M-27 | 8 | 12 | 30 |
| BPGM-30x1.5(2) | 15-20 | M-30 | 9 | 12 | 33 |
| BPGM-32x1.5 (2) | 16-21 | M-32 | 9 | 12 | 35 |
| BPGM-40x1.5(2) | 22-32 | M-40 | 9 | 15 | 45 |
| BPGM-50x1.5(2) | 32-38 | M-50 | 10 | 15 | 57 |
| BPGM-63x1.5(2) | 37-44 | M-63 | 11 | 15 | 68 |
| BPGM-70x1.5(2) | 42-52 | M-70 | 15 | 20 | 80 |
| BPGM-72x1.5(2) | 42-52 | M-70 | 15 | 20 | 80 |
| BPGM-75x1.5(2) | 42-52 | M-75 | 15 | 20 | 80 |
| BPGM-80x1.5(2) | 55-62 | M-80 | 15 | 20 | 87 |
| BPGM-88x1.5(2) | 65-70 | M-88 | 15 | 20 | 95 |
| BPGM-100x1.5(2) | 78-84 | M-100 | 15 | 20 | 110 |
